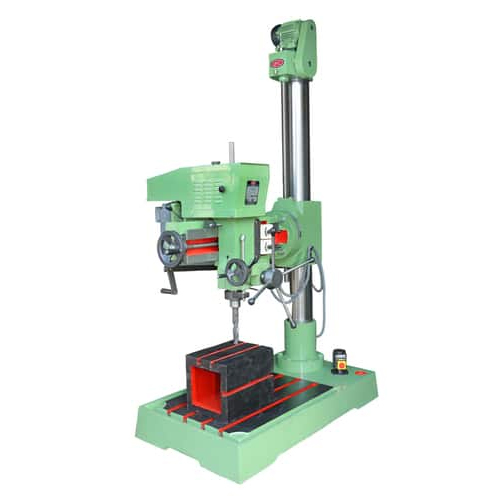

40 mm Radial Drill Machine
Drill capacity |
40 mm |
Pillar diameter |
165 mm |
Spindle nose to table distance |
600 mm |
Distance from spindle nose to base distance |
900 mm |
Distance from spindle center to pillar surface |
850 mm maximum -400mm minimum |
Taper in spindle |
M.T. 4 |
Number of speed |
8 speed |
Range of speed (R.P.M) |
70 to 2000 |
Work table size (in mm) |
305 305 400 |
Base size (machined area) |
730 930 |
Overall base size |
730 1270 |
Spindle travel |
255 mm |
Pillar length |
1400 mm (extra length + 460) |
Overall height with pulley guard |
1870 mm |
Weight (Approx) |
825 Kg |
Shipping wooden case inner size L x W x H |
1300 x 800 x 2100 |
V-belt spindle |
B-47 |
V-belt lifting |
A-24 |
No. of Slots |
4 |
Type of Feed |
Manual |
![]() |
