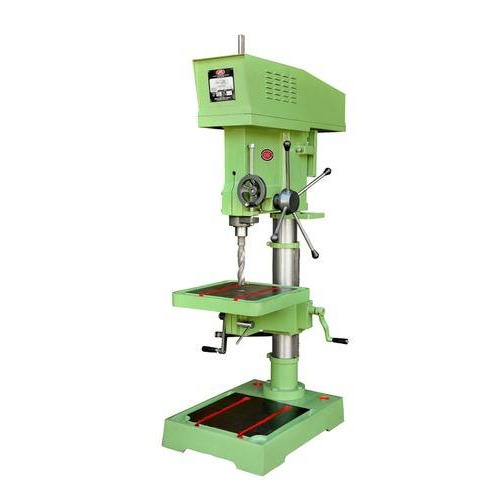

Working with the support of our knowledgeable workforce, we are acknowledged for manufacturing and supplying 19 MM Pillar Drill Machine. In most of the construction industry, the machine is required for performing drilling of different materials like concrete, stone, wood, metal sheet and plastic. Majority of our clients highly acclaimed this machine for its durability, high efficiency, reliability, dimensional accuracy and high strength. The rigid structure offers vibration free performance. All the machinery parts are smoothly finished with grinding property so as to close tolerance and heighten the overall machining performance. 19 MM Pillar Drill Machine is rigidly checked on different quality parameters under the guidance of our professionals.
Features:
Technical Specifications
Drill Capacity in Steel | 20mm |
No. of spindle speed | 8 |
Spindle speed in RPM | 80 to 3500 |
Spindle Nose | MT-2 |
Spindle center to column surface | 200mm |
Spindle travel | 160mm |
Square table size | 250x250mm |
Max. Distance from spindle to table | 650mm |
Max. Distance from spindle to base | 900mm |
Base working surface | 140x310mm |
Column diameter | 74mm |
V-belt section | A-44 |
Motor speed | 1400 RPM |
Motor capacity | 0.5 HP |
Weight of machine | 110 kg(with out motor approx) |
Type of feed | Manual |
No. of 'T' slots | 2 |
![]() |
